1.Automatic batchingand feeding system
batching system
feeding system
HR17-D3-1300D
melting system
2.Cupola, incinerator and dedusting sytstem
cyclone dust collector and incinerator
HR19-D4-13-2 Stainless steel heat exchanger
HR19-D4-13-3 Stainless steel heat exchanger
desulfurization and dedusting system
3.Fiber forming and paving system

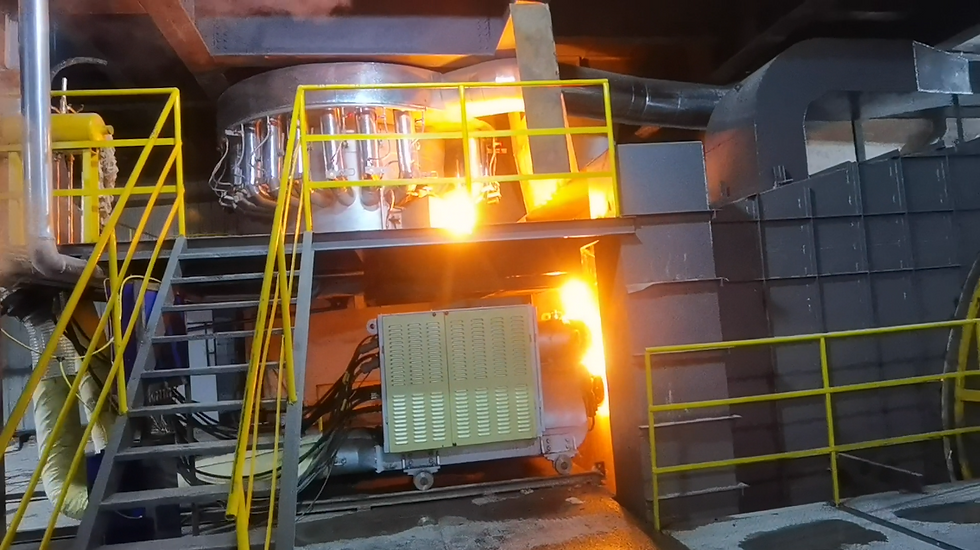

HR17-D6 370 spinning machine*2 pcs
spinning machine fan cooling system
spinning machine binder and air system
HR17-D5 fiber collector
fiber collector-negative pressure chamber grid type dust removing system and piping

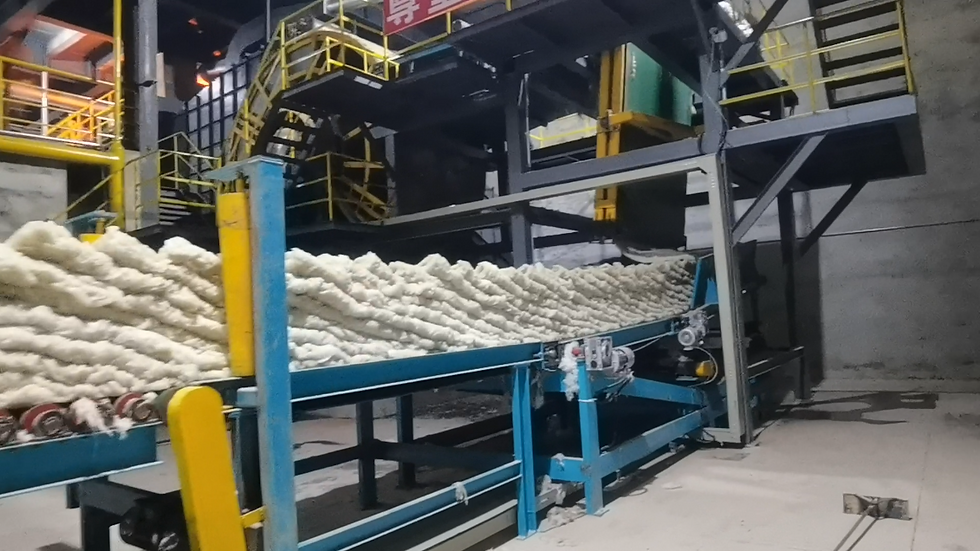

pendulum fiber paving system
4.Pleating and pressing, curing and heating system
HR17-D38 pleating and pressing machine
HR17-35-Ngas curing ovencuring oven
heating system 12.5D+10D
curing oven -negative pressure chamber grid type dust removing system and piping
5.Cutting, forming anconveying system
cooling conveyor section
cutting conveyor section
forming conveyor section
trimming machine
cooling fan
waste recycling fan
dedusting and recovery pipeline
slitting machine
cutting machine
Inclined cross-cutting machine
synchronous cutting machine
6.Palletizing and thermoplastic packaging system
palletizing and thermoplastic packaging machine
7.Automatic control system
automatic control system
8.Auxiliary supporting system
wire and cable / cable tray / auxiliary material / staircase / pipe / valve
9.Standard Supporting Environmental Protection Equipment
high temperature cloth bag filtering system 864 m2
normal temperature cloth bag filtering system 220 m2
