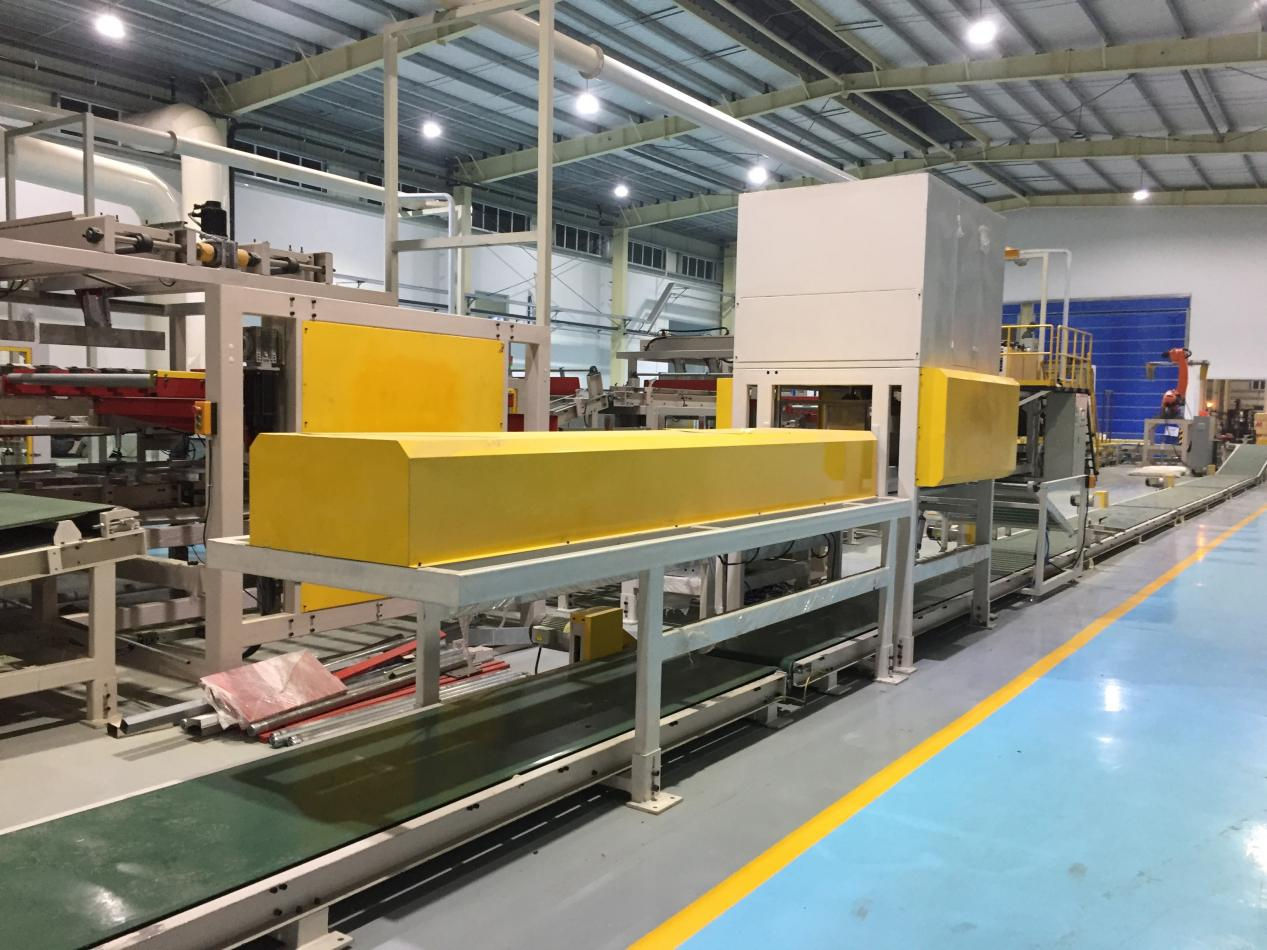

The compression machine consists of 4 parts - feeding conveyor, compression unit, pushing mechanism and output port.
Compression
Compression range: from 600-800mm to 400mm. Compression unit is equipped with servo cylinder to accurately control the movement.
Production speed: 2 packages/minute
Conveyor height:700mm.
Number of operator: Three. One operator stacks and feeds, two operators place the bag and one of them also control the machine. All those job can be done by only one person, it depends.
Power
Rated Power: 20kW.
Feeding:0.75kW.
Pushing mechanism:7.5kW.
Servo motor:11.5kW.
